Product Details
Uses and Features

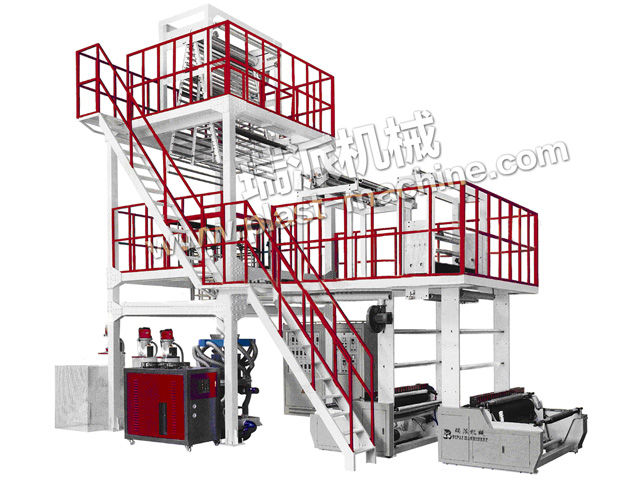

It is fit to puff high density and low density polyethylene industry film, farm-oriented mulch film. The cylinder and the screw stems of the extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after nitrogen treatment and precision finishing. It is double rolling and account the meter automatically.
Main Technical Variables
MODEL |
SJ-3L-50B |
SJ-3L-55B |
SJ-3L-65B |
SUITABLE MATERIAL |
LDPE LLDPE HDPE |
FILM WIDTH(mm) |
800-1500 |
1200-2000 |
1600-2500 |
FILM THICKNESS (mm) |
0.028-0.20 |
0.028-0.20 |
0.03-0.20 |
MAX.EXTRUSION OUTPUT |
220kg/hr |
290kg/hr |
380kg/hr |
EXTRUDER |
|
|
|
SCREW DIAMETER(mm) |
Φ50 Φ55 Φ50 |
Φ55 Φ65 Φ55 |
Φ65 Φ70 Φ65 |
SCREW L/D LENGTH |
28:1 |
SCREW MATERIAL |
SACM-645/38 CRMOALA |
CYLINDER MATERIAL |
SACM-645/38 CRMOALA |
CYLINDER COOLING |
370wx3 |
370wx3 |
550wx3 |
DRIVING MOTOR(Kw) |
A18.5+B22+C18.5kw |
A22+B37+C22kw |
A37+B45+C37kw |
TEMPERATURE CONTROL |
3x3 |
3x3 |
4x3 |
AVERAGE POWER-CONSUME(Kw) |
80 |
95 |
120 |
TYPE OF DIE |
|
|
|
DIE SIZE(mm) |
250/300 |
400 |
500 |
TEMPERATURE CONTROL |
4 |
AIR RING |
1 |
AIR BLOWER(Kw) |
7.5 |
11 |
15 |
TAKE-UPUNIT |
|
|
|
PINCH ROLLER (DIA. WIDTH)mm |
Φ165*1600 |
Φ190*2100 |
Φ190*2600 |
TAKE-UP SPEED(m/min) |
5-60 |
5-45 |
5-45 |
TAKE-UP MOTOR(Kw) |
1.5 |
2.2 |
2.2 |
WINDING UNIT |
|
|
|
TYPE |
SURFACE FRICTION TYPE |
WINDING MOTOR(Kw) |
1.5 |
2.2 |
2.2 |
WINDING SPEED(m/min) |
5-60 |
5-45 |
5-45 |
COVER DIMENSION(m) |
9.5*4.5*7.5 |
10.5*5.0*7.9 |
11.*5.5*10 |
|
